Sepatate Copper From Plastic 0.4kw Small Vibrating Table Machine

Sepatate Copper From Plastic 0.4kw Small Vibrating Table Machine

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: TMS-03

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD800-1200 per set
Packaging Details: Ply wooden case
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Vibrating Table Machine Function: Separate Copper And Plastic
Power: 0.4kw Size: 800*2000mm
Height: Customised Color: White
High Light:

0.4kw Small Vibrating Table

,

800*2000mm Small Vibrating Table

,

0.4kw scrap recycling machine

Product Description

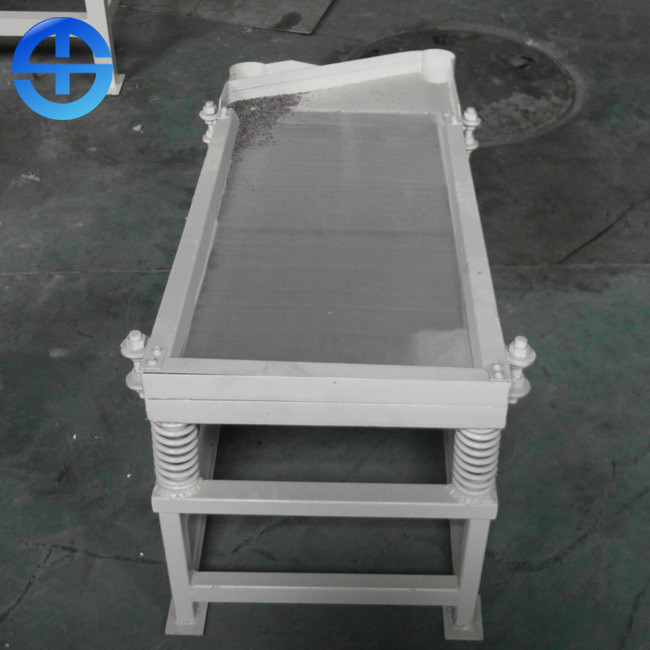

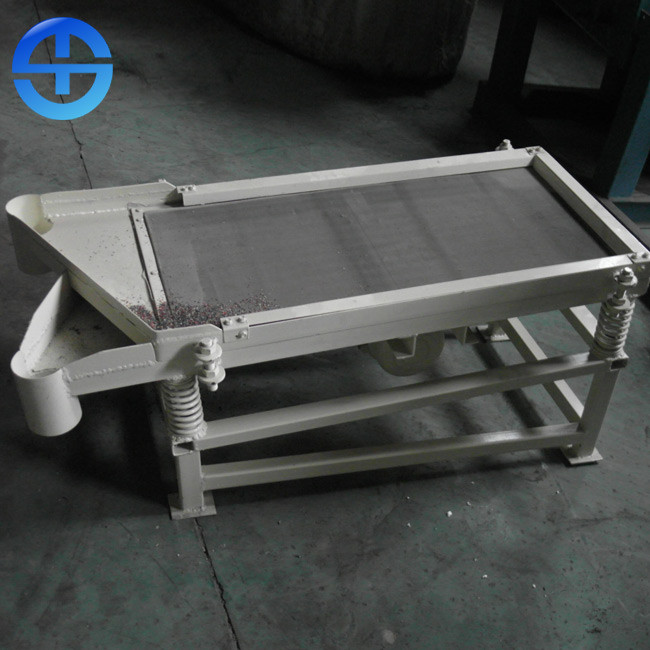

Small Vibrating table machine 0.4kw sepatate copper from plastic

Introduction of vibrating table machine

Vibrating table machine is very practical in chemical, food, medicine and other industries. It has high screening accuracy, large processing capacity, simple structure, low energy consumption, low noise, long service life, good sealing, little dust spillage and convenient maintenance.Often cooperate with other mechanical equipment, such as conveyor, hoist, crusher, etc., to complete the automatic operation of the whole assembly line. The linear powder screening machine uses the vibration motor as the vibration source, so that the material is thrown up on the screen and moves forward in a straight line. The material evenly enters the feed inlet of the screening machine from the feeder, and generates several specifications of the upper and lower screen materials through the multi-layer screen, which are discharged from their respective outlets. Because the material trajectory is linear motion, it is called linear screen or linear vibrating screen.

The small linear vibrating screen is mainly composed of screen box, screen frame, screen, vibration motor, motor pedestal, damping spring, support, etc.

1. Screen: low carbon steel, brass, bronze, stainless steel wire, etc.

2. Screen frame: made of pine or wood with small deformation, mainly used to keep the screen smooth and reach normal screening.

3. Screen box: welded by several kinds of steel plates with different thickness, with certain strength and stiffness, is the main component of the screen machine.

4. Vibration motor: (for operation and maintenance methods, please refer to the operation manual of vibration motor).

5. Support: it is composed of four pillars and two channel steel, supporting the screen box. When installing, the support must be vertical to the ground, and the channel steel under the two pillars should be parallel to each other.

6. Damping spring: prevent vibration from being transmitted to the ground, and support all the weight of screen box. When installing, the spring must be perpendicular to the ground.

7. Motor pedestal: when installing the vibration motor, the connecting screw must be tightened before use, especially three days before the trial use of the new screen machine, it must be repeatedly tightened to avoid loosening and causing accidents.

Characteristics of vibrating table machine

1. Compared with other related brand manufacturers, it has large screening area and high efficiency processing capacity..

2. Unique screen structure design, convenient and fast screen change (only 3 to 5 minutes), in addition, this design allows the use of a variety of screens (nylon, special dragon, PP mesh).

3. The mother net fully supports the fine net, so the fine net can have a longer service life, and reduce the use of the fine mesh consumables, and the production process with a long deposition time can reduce many costs.

Technical parameters of vibrating table machine

Model Size Power Weight
TMS-01 350*1200mm 0.12kw 80kg
TMS-02 600*1900mm 0.18kw 200kg
TMS-03 800*2000mm 0.4kw 280kg

Use and Maintenance of vibrating table machine

1. At the beginning of the machine operation, check the anchor bolts at least once a day to prevent loosening.

2. When the motor rotation direction does not meet the requirements, adjust the power phase sequence.

3. After 1500 hours of operation, the bearing should be checked and replaced immediately if there is serious damage.

4.. The motor should be well lubricated. Lithium grease (zl-3) should be added once every two weeks or so. When adding oil, proper amount of lithium base grease should be added through the oil cup. When sealed bearings are used, the motor is not equipped with an oil cup.

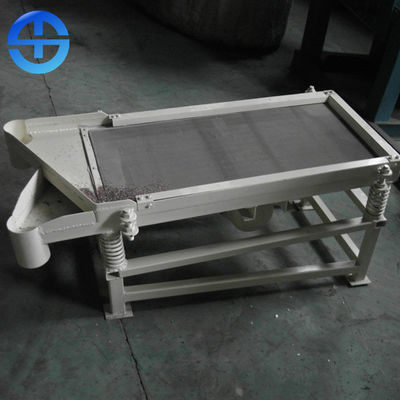

Sepatate Copper From Plastic 0.4kw Small Vibrating Table Machine 0
