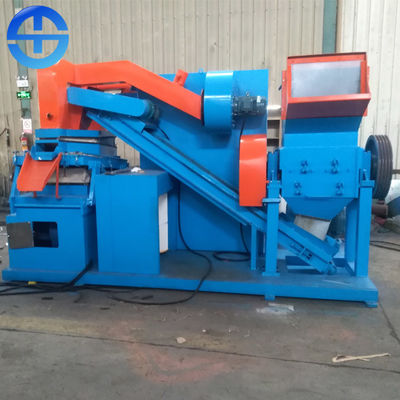

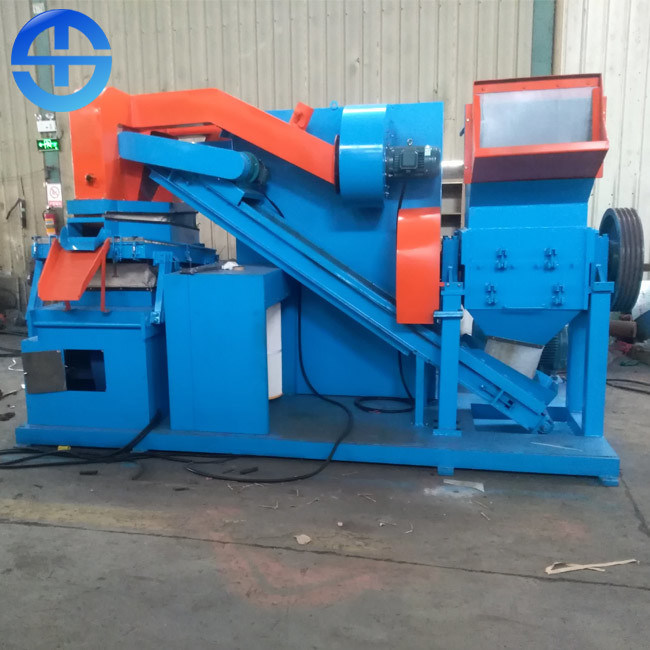

Belt Convey 300kg/H 400kg/H Copper Recycling Machine For Wires

Belt Convey 300kg/H 400kg/H Copper Recycling Machine For Wires

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: TMS-600A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: One 20 feet container for copper recycling machine
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Recycling Machine Type: Dry Type
Motor Power: 48.36kw Function: Recycle Pure Copper
Granules Purity: 99% Input: 300-400kg/h
Net Weight: 3400kg Warranty: 12 Months
High Light:

400kg/H Copper Recycling Machine


300kg/H Copper Recycling Machine


400kg/H copper wire granulator

Product Description

300-400kg/H Input Belt Convey Copper Recycling Machine For Wires


Introduction of copper recycling machine


Copper recycling machine is used for recycling scrap copper wires/cables with diameter less than 25mm, better for single conductor diameter of 0.2-0.5mm. The wire is like auto wires, communication cables and kinds of miscellaneous wires and cables.
copper wires / cables are shredded by crushers, then plastic and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector. The copper granules and plastic granules will be separated by small vibrator twice time. The recovery rate can reach 99%.

Technical Specifications of copper recycling machine
Model Dimension (mm) Total Power (kw) Capacity (kg/h) Weight (kg)
Mini-400 1500*1500*1900 11.92 100 750
TMS-400 2700*1900*2300 23.12 150-200 1200
TMS-600A 4000*1950*2300 48.36 300-400 3400
TMS-600B 4300*1950*2400 52.36 300-400 3400
TMS-800 9200*4100*2400 78.76 500-800 8000
TMS-1200 16000*10000*3000 129.36 1000-1500 12000


Features of copper recycling machine

1. The whole system is controlled by the Electricity Control Panel.
2. The bottom air flow is controlled by the Airlock.

3. Crushing system adopts D2 alloy cutting tool, the processing hardness is HR58. It can ensure the high-wearing resistance as well as a certain tenacity of the crushing blade. The structure is designed as splayed alternate shearing structure, the shell of wire grinding equipment adopts water cooling system, thus avoiding, material heating and melting after long time operation.
4. The operation of the complete set of equipment is fully enclosed, it is equipped with an advanced pulse dust removal system that effectively collects dust in the production process and discharges it from the dust outlet.
5. In view of the fact that the copper wire crusher manufactured in other countries can recover the copper with a purity more than 99.5%, but 3-5% of the copper powder and brushed copper will be lost into the plastic in the sorting process, our company is equipped with electrostatic selection equipment, the remaining copper in the plastic can be sorted out again, so that there is no plastic in the copper and no copper in the plastic.


Maintenance of copper recycling machine

In the case of correct selection of machines, the service life also depends on appropriate use and timely maintenance. High temperature complex lithium base grease is used for bearings, so they are high temperature resistant, good at impact resistance, have a long service life. According to the actual use, users shall regularly inject grease. When Chopper blades get blunt, remove the blades and sharpen them with a blade sharpening machine, and adjust the spacing between fixed blades and rotating blades to 0.15mm-0.25mm. The grease for bearings should be replaced every 300 working hours, and grease for chains shall be added every 15000 working hours.


RFQ of copper recycling machine

1. Is copper worth any money?

Copper price will change depending on its degree of purity or contamination with other metals such as plumb, steel or aluminum etc. On average, scrap copper is sold between $1.20 to $2.50 per pound. Many different factors affect copper prices, so prices fluctuate daily.
