PLC Control 99.5% Recovery Cable Wire Recycling Machine

PLC Control 99.5% Recovery Cable Wire Recycling Machine

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 800

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD35200-36650 per set
Packaging Details: Full container 1*40'GP for cable wire recycling machine
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Name: Cable Wire Recycling Machine Application: Waste Cables/wires
Total Power: 110.76kw Recovery Rate: 99.5%
Input Capacity: 400-600kg/h Diameter Of Wire Processed: 0.1-30mm
Occupied Area: 10.128*5.977*3.200m Dust Removal Effect: 99%
High Light:

99.5% Recovery Cable Wire Recycling Machine


PLC Control Cable Wire Recycling Machine


PLC Control cable granulator machine

Product Description

PLC Control 99.5% Recovery Cable Wire Recycling Machine

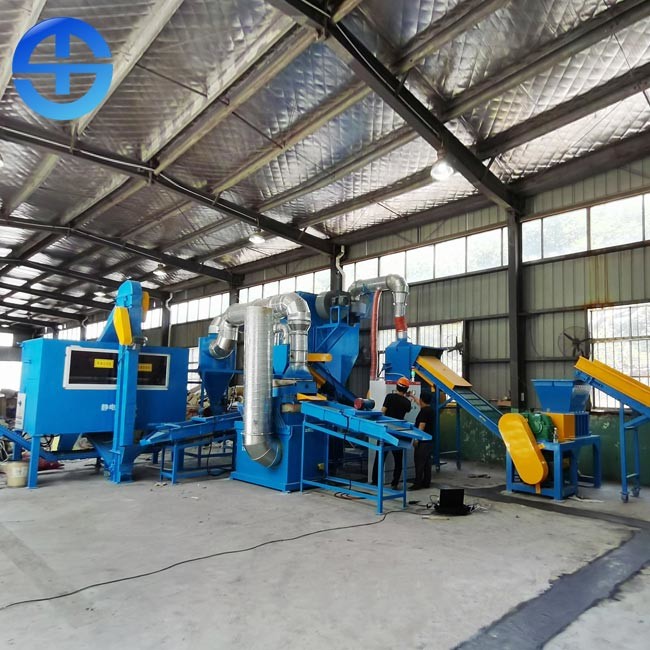

PLC Control 99.5% Recovery Cable Wire Recycling Machine 0

Details of cable wire recycling machine

In the world, there are many kinds of waste cables that have been used or eliminated, such as communication wires, vehicle wires, computer wires, telephone wires, household appliances wires, and etc.Our aim is to overcome the loss of copper and other by-products in the process of regeneration and make it more scientific and automatic. It reduces personnel, improves the recovery rate, and thus improves the production efficiency

TMS-800 cable wire recycling machine is a complete set of copper recycling plant. The separation and recovery of copper and plastic in the process of cable crushing are completed by the separation equipment. The successful development of the machine solves the pollution caused by burning copper. It not only improves the quality of copper recovery, but also has the advantages of plastic recovery. The machine adds electrostatic separation equipment, which can separate 100% of the metal mixed in the plastic particles, greatly improving the recovery efficiency of copper, and making the purity of the whole production equipment more than 99.9%.

Features of cable wire recycling machine

1. The layout of production line is compact and space utilization is high.

2. Intelligent control, high degree of automation, overload automatic shutdown protection.

3.The separation system adopts multi-layer high-precision separation, frequency conversion control, and the separation rate can reach 97% - 99%.

4. The crushing system adopts high strength alternating cutter shaft with high efficiency. The blade is made of special alloy material with long srevice life.

5. The operation process of the equipment is closed, with additional bag dust removal and air filtration system to ensure the loss of materials and dust emission.

Working process of cable wire recycling machine

The equipment through the first crusher crush the bulk materials into 5-10cm, then convey into the shredder for second shred, final material is less than 5mm ( second shreder have 3mm, 4mm 5mm shredder net ). After the screening of magnetic separator, some iron and other magnetic substances are separated, copper and plastice are separated by the vibrating separator, dust is collected by the collector. Whole plant under control by PLC.

PLC fuction:1. Effective protection of motor 2. Real time current monitoring of various electrical appliances 3. One touch start function 4. One button stop function

Technical specifications of cable wire recycling machine

Model TMS-800
Dimension 10128*5977*3200mm
Porudctivity 400-600kg/h
Separation effect 99.5%
Dust removal effect 99%
Total power 110.76kw

Configuration list of cable wire recycling machine

Item Unit QTY Power Remark
Electric control cabinet set 1 / Control the operation of the equipment.Have PLC control system, all paets using schneider brand (except meter and soft start of two shdreede motor)
1# Conveyor set 1 1.5 “V” type Loading material
2# Conveyor set 1 1.5+0.75 “V” type Loading material with magnetic separator
3# Conveyor set 1 1.5 “V” type Loading material
4# Conveyor set 1 2.2 Loading copper with magnetic separator( Double layer conveyor)
Single shaft shredder set 1 37 To cut the long cables into short ones also take some copper from the cables
Crusher set 1 45 Main Crusher
Warter cooling for crusher set 1 1.5 Let the crusher cool down
Main Vibration set 1 9.7 Have 7.5kw blower and 2.2KW Shanking motor
Main dusty collection set 1 11.95 Dust absorption
Small shaking table set 2 018*2

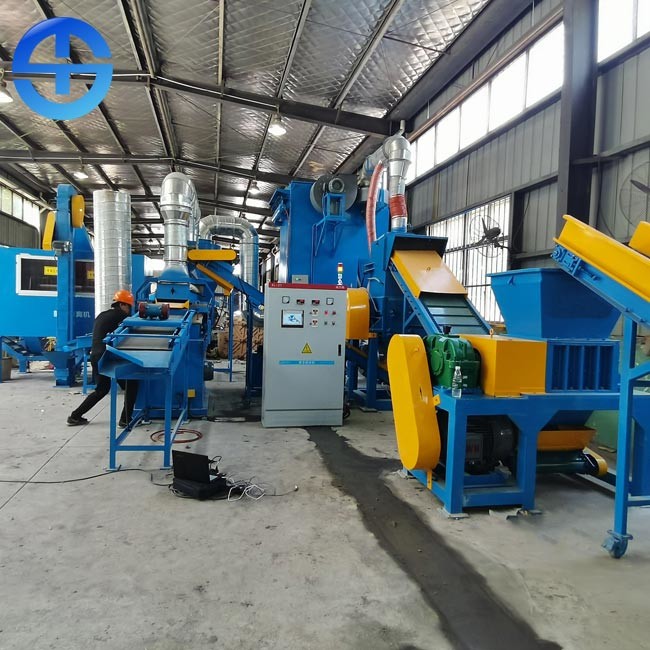

PLC Control 99.5% Recovery Cable Wire Recycling Machine 1
