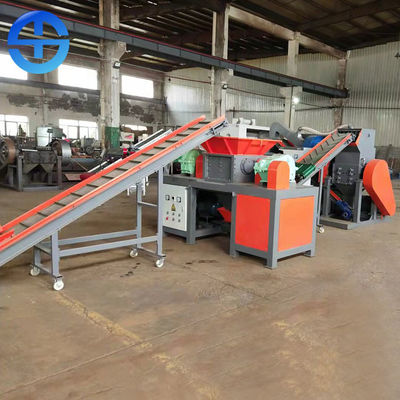

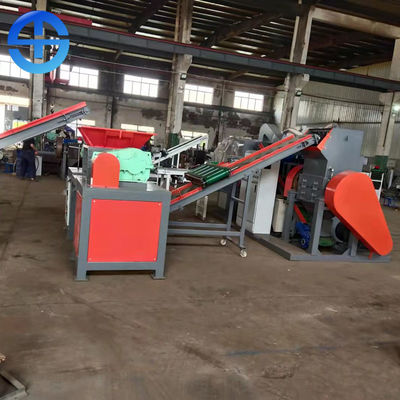

600-800kg/H Copper Wire Recycling Machine 99% Copper Purity
Product Details:
Place of Origin: | Zhengzhou, China |
Brand Name: | TMS |
Certification: | CE, ISO |
Model Number: | TMS-600A |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiated |
Packaging Details: | One 20 feet container for copper recycling machine |
Delivery Time: | 15 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 15 sets per month |
Detail Information |
|||
Name: | Copper Wire Recycling Machine | Type: | Dry Type |
---|---|---|---|
Motor Power: | 48.36kw | Function: | Recycle Copper |
Copper Purity: | 99% | Input: | 600-800kg/h |
Net Weight: | 3000kg | Warranty: | 1 Year |
High Light: | 800kg/H Copper Wire Recycling Machine,600kg/H Copper Wire Recycling Machine,99% Copper Wire Recycling Machine |
Product Description
99% Copper Purity 600-800kg/H Copper Wire Recycling Machine
Introduction of copper wire recycling machine
Copper cable recycling machine can crush waste copper cable or wire into 1-5 mm granules mixed with plastic(PVC)&copper.Then use air, specific gravity and electrostatic separation technique to separate copper and plastic.So that the copper and plastic can be both recycled, greatly increasing their application values. By using totally dry-type physical separating technique there will be no environment pollution during the whole process and the separating ratio can be reach 99%.
After a brief sort-out before hand, similar size cables can be processed together ; 99% Copper and PVC Separation, 99% Copper Recycled, no dust, no pollution ; The one whole structure design suitable for transportation,installation, commissioning and maintenance, easy to plug and play ; Cable processing scope: all types of cables under 20mm, car cables,data cables,computer cable,etc that the stripping machine not suitable for
Model | Dimension (mm) | Total Power (kw) | Capacity (kg/h) | Weight (kg) |
Mini-400 | 1500*1500*1900 | 11.92 | 100 | 750 |
TMS-400 | 2700*1900*2300 | 23.12 | 150-200 | 1200 |
TMS-600A | 4000*1950*2300 | 48.36 | 300-400 | 3000 |
TMS-600B | 4300*1950*2400 | 52.36 | 300-400 | 3400 |
TMS-800 | 9200*4100*2400 | 78.76 | 500-800 | 8000 |
TMS-1200 | 16000*10000*3000 | 129.36 | 1000-1500 | 12000 |
Features of copper wire recycling machine
1. The whole system is controlled by the Electricity Control Panel.
2. The bottom air flow is controlled by the Airlock.
3. Crushing system adopts D2 alloy cutting tool, the processing hardness is HR58. It can ensure the high-wearing resistance as well as a certain tenacity of the crushing blade. The structure is designed as splayed alternate shearing structure, the shell of wire grinding equipment adopts water cooling system, thus avoiding, material heating and melting after long time operation.
4. The operation of the complete set of equipment is fully enclosed, it is equipped with an advanced pulse dust removal system that effectively collects dust in the production process and discharges it from the dust outlet.
5. In view of the fact that the copper wire crusher manufactured in other countries can recover the copper with a purity more than 99.5%, but 3-5% of the copper powder and brushed copper will be lost into the plastic in the sorting process, our company is equipped with electrostatic selection equipment, the remaining copper in the plastic can be sorted out again, so that there is no plastic in the copper and no copper in the plastic.
Maintenance of copper recycling machine
In the case of correct selection of machines, the service life also depends on appropriate use and timely maintenance. High temperature complex lithium base grease is used for bearings, so they are high temperature resistant, good at impact resistance, have a long service life. According to the actual use, users shall regularly inject grease. When Chopper blades get blunt, remove the blades and sharpen them with a blade sharpening machine, and adjust the spacing between fixed blades and rotating blades to 0.15mm-0.25mm. The grease for bearings should be replaced every 300 working hours, and grease for chains shall be added every 15000 working hours.
